Waste tire pyrolysis oil recycling plant

1.What is Tire Pyrolysis Technology?

Pyro = heat. Lysis = break down.

Pyrolysis is chemical reaction. This reaction involves molecular breakdown of larger organic molecules into smaller molecules in presence of heat. Pyrolysis is also known as thermal cracking, cracking, thermolysis, depolymerization, etc. It differs from combustion (oxidation) and effectively avoids the generation of harmful substances.

Tire pyrolysis specifically involves placing waste tires in a closed, anaerobic or low-oxygen reactor and subjecting them to a pyrolysis reaction at a high temperature of approximately 400 to 450 degree Celsius. During this tire pyrolysis process, the organic polymers (rubber) in the waste tires decompose into gaseous, liquid, and solid products. This is a green and environmentally friendly process that converts waste into industrial fuels like TPO/TDF (tire pyrolysis oil/tire derived fuel), carbon black, steel wire, and combustible gas(hydrocarbon gas).

Pyrolysis is a great and sustainable way of recycling large amounts of tires, which can not only work as a solution for tyre treatment&management, but also produce alternative fuel for profits.

Waste tyre recycling pyrolysis solution

2. DOING® Waste Tire to Pyrolysis Oil Recycling Plant

DOING® waste tire to pyrolysis oil recycling plant is a high-tech device specifically designed for the efficient processing of waste tires. It effectively decomposes the complex long-chain polymers (containing over 50,000 carbon atoms, linked in cross-linked or straight-chain form) in waste tires into shorter chains, converting them into fuels and materials with high utilization value.

2.1 Core Advantages of the Tire to Pyrolysis Oil Recycling Equipment

High Oil Yield: Optimized pyrolysis reactor design ensures a high conversion rate of waste tires and excellent oil quality.

Safe and Reliable: Strictly adhering to national and industry safety standards, equipped with a complete safety interlock system, over-temperature and over-pressure alarms, and pressure relief devices to ensure safe and stable equipment operation.

Environmentally Compliant: Waste gas, wastewater, and waste residue are all properly treated. The exhaust gas undergoes multi-stage purification to meet emission standards or can be recycled; wastewater is recycled; and slag (carbon black) is treated harmlessly or further processed.

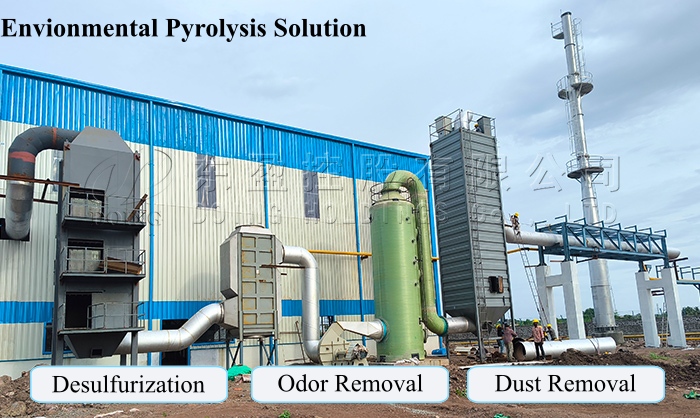

Environmental devices of tire pyrolysis oil production plant

Energy-efficient and high-performance: Utilizing advanced heat exchange systems and combustible gas recovery technology, energy consumption is significantly reduced, optimizing operating costs.

High degree of automation: Automated feeding and discharging systems and PLC control systems can be configured according to customer needs, reducing labor costs and improving production efficiency.

Strong adaptability: It can process not only waste tires but also various organic wastes such as waste plastics, waste oil sludge, and waste rubber through pyrolysis.

2.2 Tire to Pyrolysis Oil Recycling Process Working Principle Overview

①Pretreatment: Waste tires undergo pretreatment processes such as crushing and fiberization, or are fed whole (depending on the equipment model).

②Closed feeding: The treated waste tires are fed into the pyrolysis reactor via an automated or manual system.

③Heating and pyrolysis: In an oxygen-free environment, the reactor is externally heated, causing the tires to undergo a pyrolysis reaction at a preset temperature (400-450°C).

④Condensation and Separation: The oil-gas mixture produced by pyrolysis enters the cooling system, where it undergoes multi-stage condensation to separate the pyrolysis oil.

⑤Exhuast Gas Treatment: The uncondensed combustible gas (syngas) is purified. Part of it is returned to the combustion chamber as fuel to heat the tyre pyrolysis reactor, saving fuel investment for the operation of tyre pyrolysis oil production plant.

⑥Carbon Black and Steel Wire Discharge: After pyrolysis, the carbon black and steel wire in the reactor are discharged under sealed conditions, cooled, and then processed further.

Here is the latest 3D video of fully continuous tire to pyrolysis oil recycling machine, click to learn more about automatic tire pyrolysis process:

3. Equipment Models and Specifications of DOING® Tire Pyrolysis Oil Plant

As a world-leading pyrolysis machine manufacturer, Henan DOING® Company provides a full range of waste tire to pyrolysis oil recycling plants, from small to large, from batch to continuous, to suit customers with different investment scales and processing needs.

3.1 DOING® Batch Type Waste Tire to Pyrolysis Oil Recycling Plant

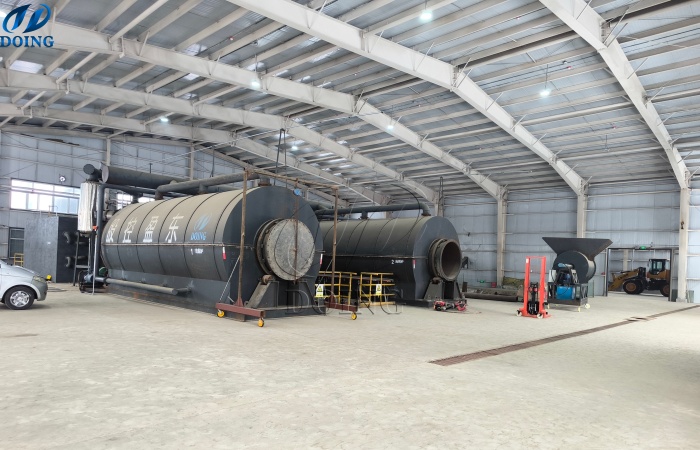

Batch watse tire to pyrolysis oil recycling plants

• Features: Relatively low investment cost, flexible operation, suitable for customers with initial investment or small processing volume.

• Typical Processing Capacity: Daily processing capacity ranges from 1 tons to 15 tons per set per batch. But We also have small skid-mounted type tire pyrolysis oil recycling plant, which is easy for transportation and installation.

• Recommended Customers:

Small Entrepreneurs/Individual Investors: Limited funds, hoping to quickly start the project with a short payback period.

Small Waste Recycling Stations: Centralized processing of surrounding waste tires, increasing profit points.

Research Institutions/Demonstration Projects: Used for technology verification or teaching demonstrations.

Main Configuration: Single furnace or alternating operation of multiple furnaces.

3.2 DOING® Semi-continuous Waste Tire to Pyrolysis Oil Recycling Plant

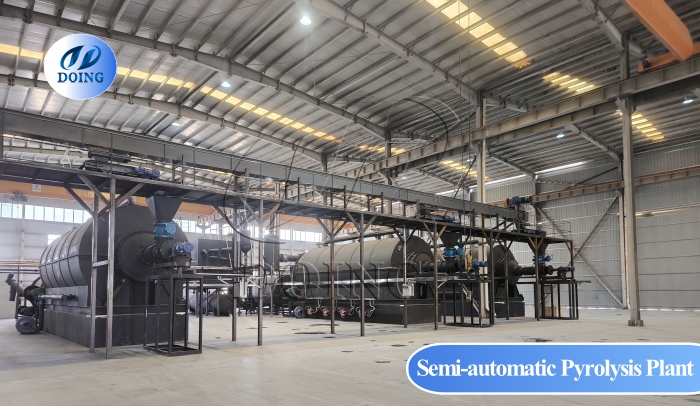

Semi-continuous watse tire to pyrolysis oil recycling plants

• Features: Combines the advantages of intermittent and continuous pyrolysis, partially automated, more efficient, and with a moderate return on investment.

• Typical Processing Capacity: Daily processing capacity ranges from 10 to 20 tons per set.

• Recommended Customers:

Medium-sized Recycling Enterprises: Enterprises with a certain scale seeking higher processing efficiency and automation levels.

Regional Waste Treatment Centers: Solving local waste tire disposal problems.

• Main Configuration: Automated feeding and discharging systems, pyrolysis furnaces, oil condensation systems(water tank type or tube condensers), etc.

3.3 DOING® Fully Continuous Waste Tire to Pyrolysis Oil Recycling Plant

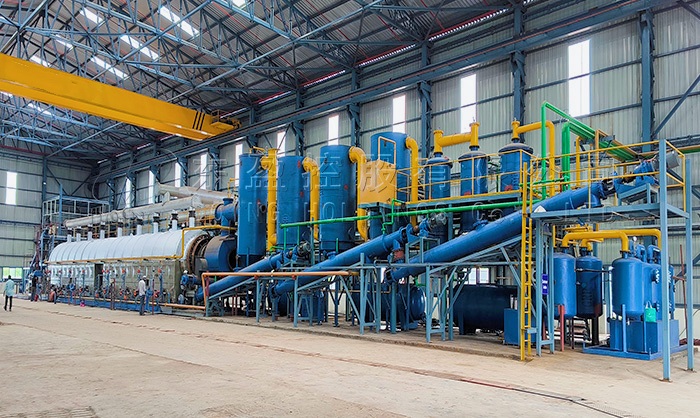

Fully continuous tire pyrolysis oil production plant

• Features: High degree of automation, large processing capacity, stable operation, highest production efficiency, and lowest labor costs. Suitable for large-scale industrial production.

• Typical Processing Capacity: Daily processing capacity ranges from 15 to 50tons per set or even higher.

• Recommended Clients:

Large Environmental Protection Groups/Resource Recycling Enterprises: Seeking economies of scale and continuous, stable production.

Industrial Park Waste Treatment Centers: Providing waste tire processing solutions for large industrial enterprises.

Energy Companies: Seeking alternative energy production bases.

• Main Configurations: complete automated tire pyrolysis production line, PLC control system, multi-stage oil cooling system and carbon black discharging system, heat recovery system, tire to rubber powder processing system(optional, including tire crusher, big truck tyre cutter, tire steel wire drawing machine/tire steel wire separator)

4. End products of waste tyre to pyrolysis oil recycling plant:

Waste tire pyrolysis equipment not only solves the waste problem but, more importantly, produces a variety of high-value fuel products, forming a complete industrial chain.

4.1 Tire Pyrolysis Oil (TPO)

TPO tyre pyrolysis oil usgages and application industries

Tire pyrolysis oil is a good industrial fuel, similar to fuel oil, which is widely used for:

Industrial Boiler Fuel: Replacing coal and oil fuel, providing clean energy for power plants, cement plants, glass factories, ceramic factories, galvanized plant, aluminum plants, boiler factories, brick and tile factories, etc.

Heating Fuel: Central heating plants, paint factories, etc.

Heavy Oil Alternatives: Can be used as asphalt mixtures, heavy oil power plant, etc.

Refining and Upgrading: After further distillation and refining by pyrolysis oil refinery plant, higher value-added fuels such as diesel can be obtained.

4.2 Carbon Black

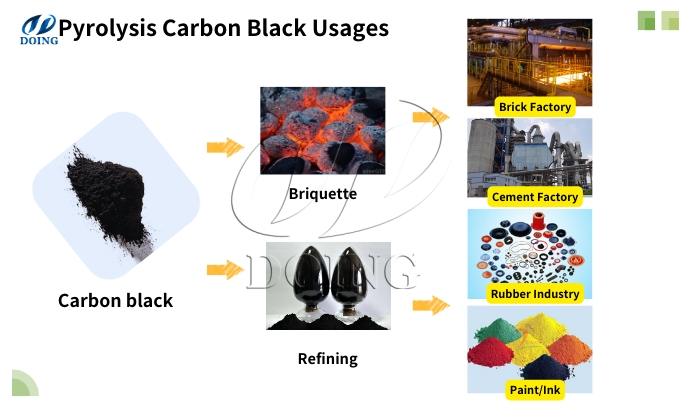

Waste tyre pyrolysis carbon black applications

Pyrolytic carbon black（also called RCB recovered carbon black）from waste tires is a valuable industrial raw material that can be used in:

Rubber Product Additives: Replaces some virgin carbon black in the production of conveyor belts, seals, rubber pads, shoe soles, tire retreading, etc.

Plastic Product Colorants: Produces black plastic bags, pipes, profiles, cable sheaths, etc.

Building Materials: Used in the production of black cement, asphalt shingles, insulation materials, etc.

Other Fields: Such as paints, inks, pigments, etc.

4.3 Steel Wire

High-purity steel wire separated from waste tires can be directly packaged and sold to scrap yards or steel mills as raw material for recycled steel.

4.4 Combustible Gas (Syngas)

The non-condensable gas produced during pyrolysis is rich in combustible components such as methane, hydrogen, and carbon monoxide. It can be used as fuel to directly heat the tyre pyrolysis furnace, achieving energy self-sufficiency for equipment operation and significantly reducing production costs. Excess combustible gas can also be used for heating or power generation.

Waste tire to pyrolysis oil recycling plant machine manufacturer

If you are interested in purchasing waste tire to pyrolysis oil recycling plant and learn more about tire project cases/running videos, please feel free to contact us. Our professional team will provide you with the most detailed consultation, the highest quality equipment, and the most comprehensive solutions&services.
