Waste engine oil to diesel distillation machine

Waste Oil to Diesel Plant / Chat on line / Give me a price

Waste engine oil to diesel distillation machine can extract diesel from waste engine oil. This machine can not only solve the problem of environmental pollution caused by waste engine oil, but also realize the recovery and reuse of waste engine oil. In fact, some discerning customers have been able to make huge profits from the waste engine oil to diesel distillation machine. Next, I will mainly introduce the work flow and advantages of waste engine oil to diesel distillation machine, and how this machine can be highly profitable.

waste oil distillation machineWaste engine oil to diesel distillation machine can convert waste engine oil into diesel

With the extensive use of automobiles and ships, a large amount of engine oil is replaced every year around the world. Most of the waste engine oil after replacement is dumped or burned on site, which not only wastes a lot of resources, but also causes serious environmental pollution.

waste engine oil to dieselWaste engine oil

In order to promote the development and utilization of energy, improve the energy structure and protect the environment, the research and development team of DOING company developed waste engine oil to diesel distillation machine.

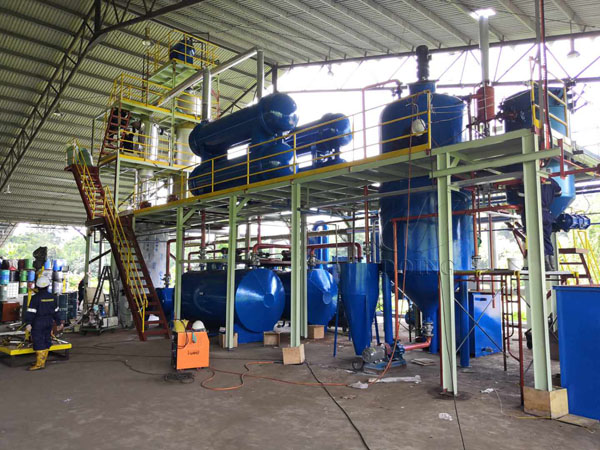

waste oil distillation machineWaste engine oil to diesel distillation machine

The main work flow of waste engine oil to diesel distillation machine is as follows:

1. Heat the heat conduction oil with the heat conduction oil furnace;

2. The heat conducting oil flows into the coil in the distillation reactor and heats the waste engine oil in the distillation reactor;

3. When the waste engine oil is heated to a certain temperature, the reactor is directly heated with fuel. As the temperature increases, the waste engine oil produces oil and flows into the buffer tank. The odorous light components in the waste engine oil can be distilled and collected into the distillation tank.

4.The oil gas from the buffer tank enters the catalytic tower. In the catalytic tower the macromolecular oil gas are broken down into smaller molecules.

5. Oil gas of small molecules enter the cooling system through the catalytic tower and are cooled into liquid oil; 6. After the oil gas steam out, the distillation reactor memory has plenty of hot asphalt, can be extracted by the asphalt pump.

waste oil distillation machineThe main work flow of waste engine oil to diesel distillation machine

The main advantages of waste engine oil to diesel distillation machine are as follows:

1. The distillation reactor adopts vertical design, which is more conducive to improving the oil conversion rate.

2. Waste engine oil to diesel distillation machine adopts double heating system. The double heating system has the advantages of fast heating speed and high efficiency, which can save customers' time.

3. The waste engine oil disposal process of waste engine oil to diesel distillation machine will not produce any pollution to the environment.

Waste engine oil to diesel distillation machine technical parameter

Technical parameter of waste oil refining  diesel oil machine
ItemsContents
ModelDY-5t, DY-10t, DY-20t, DY-50t…
Raw materialmotor oil, waste tire crude oil, plastic crude oil
Structure formVertical (easy cleaning and maintenance)
Heating methodIndirect heating to prolong the machine service life
Operating pressureConstant pressure
Heating materialCoal, charcoal, fuel gas, fuel oil
Average out-put oil rate95%
Material of reactor4 reactor with different material
Thickness of reactor18mm
Mode of coolingRecycled water cooling
Power in total20 Kw
Service lifeaverage 7 years
Land area180㎡




The final products from waste engine oil to diesel distillation machine are mainly diesel oil and asphalt.

The main USES are as follows.

1. Diesel oil: Mainly used for heavy machinery, generators, boilers, tractor, ship, truck, etc.

waste oil to diesel machineUsage of diesel

2. Asphalt: Mainly used for paving or sent to asphalt plants for re-refining.

There are places where you can get used oil for free, but the diesel and asphalt obtained from the waste engine oil can be sold at a very good price, so if you work on the waste engine oil to diesel project, you can make a big profit.
