Can Small-scale Pyrolysis Plant Be Upgraded as Your Business Grows?

For many recycling projects, the first pyrolysis plant is only the starting point rather than the final production setup.

Based on Henan DOING's experience with pyrolysis projects in more than 100 countries and regions, many customers start with a smaller plant and expand later as feedstock supply, product demand, and operating experience become more stable.

In actual projects, expansion does not always mean modifying the original reactor. More commonly, business growth is handled in three ways: optimizing existing equipment, adding a new production line, and expanding feedstock pretreatment or product processing.

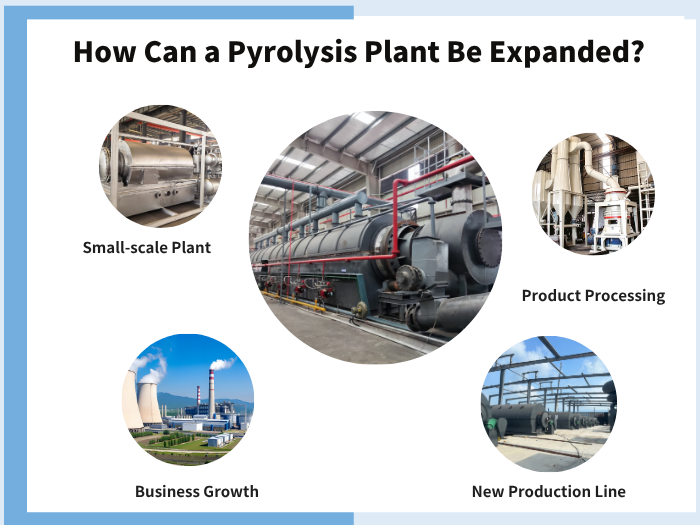

Factors influencing the expansion of waste pyrolysis projects

The right approach depends on the original equipment design, site conditions, target capacity, and future production plans.

1. Optimize Existing Equipment and Components

Some projects do not need a completely new pyrolysis plant. Instead, specific equipment functions or components can be improved to meet changing production requirements. Depending on the original design, upgrades may involve the feeding system, discharge system, control system, or other auxiliary equipment.

However, equipment modification should not be treated as a simple component replacement. The original manufacturer usually needs to check details such as equipment dimensions, component ratios, connection points, operating parameters, and supported operating conditions before recommending a modification.

For example, a feeding or discharge component that works properly on one pyrolysis plant may not be directly suitable for another plant with a different design.

Therefore, if an existing pyrolysis plant needs to be modified, it is generally better to discuss the requirements with the original equipment manufacturer. They have access to the original equipment data and can determine whether the requested modification is technically practical.

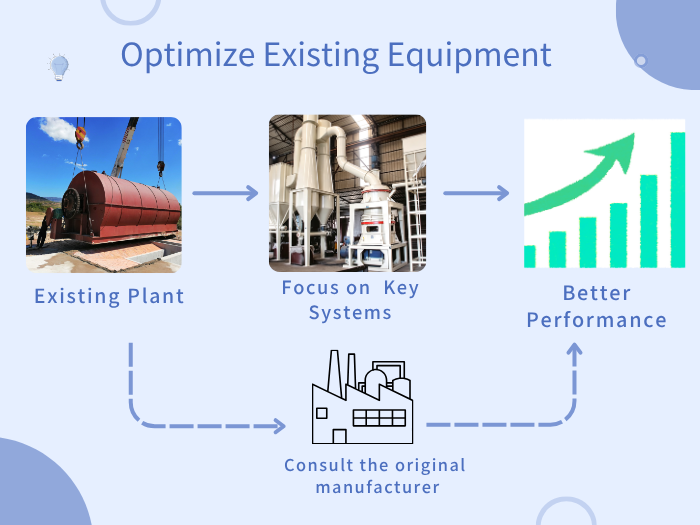

Highly effective methods for optimizing existing pyrolysis equipment

2. Expand Production with a New Pyrolysis Line

When a business needs a significant increase in processing capacity, adding a new production line is often more practical than extensively modifying a small existing reactor.

In many projects, customers expand the factory space and install the new equipment alongside the original plant.

For example, a waste to fuel recycling pyrolysis project may initially use a small or frame-type batch pyrolysis plant. After feedstock supply and product sales become more stable, the business may add a larger-capacity semi-continuous or fully continuous pyrolysis plant.

A possible development path is:

Small Batch → Larger Batch / Semi-Continuous → Fully Continuous

The actual route depends on the available feedstock, target capacity, site conditions, investment budget, and operating requirements.

This approach also means the original plant does not necessarily have to be discarded when the business grows. It can remain part of the production system while a new line takes on the additional capacity.

For this reason, future factory space should be considered when planning the first pyrolysis plant.

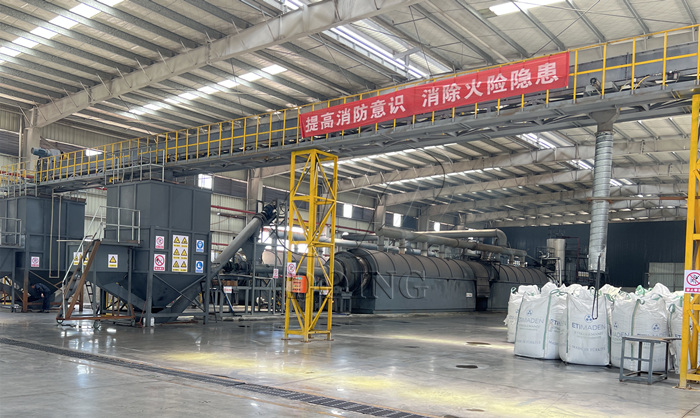

Expand the new waste pyrolysis production line

3. Expand Feedstock Pretreatment and Product Processing

Business growth does not always mean adding more pyrolysis reactors. Additional equipment before and after the pyrolysis process can also improve the overall production system.

Feedstock Pretreatment

Different raw materials may require different preparation equipment.

For example:

1. Tire shredding equipment

2. Plastic crushing equipment

3. Tire rubber powder processing equipment

4. Automatic feeding systems

These systems can help prepare the feedstock before it enters the pyrolysis plant and reduce manual handling as production increases.

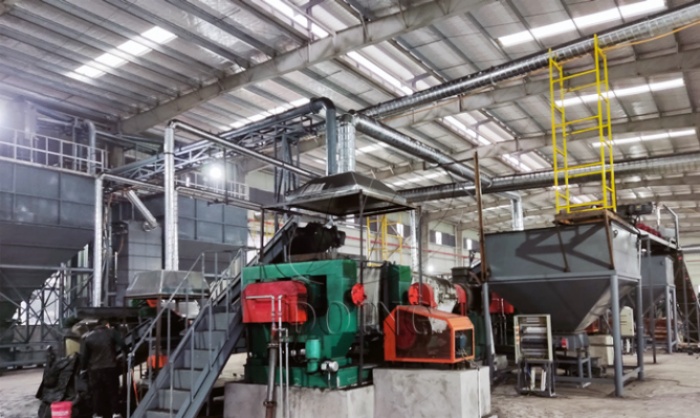

Rubber powder processing equipment for waste pyrolysis projects

Pyrolysis Product Processing

The products from pyrolysis machine can also be processed further according to the customer's market and application requirements.

Possible equipment includes:

• Pyrolysis oil distillation refining equipment

• Carbon black briquetting equipment

• Carbon black grinding equipment

• Carbon black pelletizing or granulation equipment

For example, a pyrolysis project that initially sells pyrolysis oil may later add a pyrolysis oil distillation system when further oil processing becomes commercially necessary. Similarly, carbon black can be briquetted, ground, or further processed depending on its intended application.

In this way, expansion can focus not only on producing more, but also on improving feedstock preparation and increasing the value of the final products.

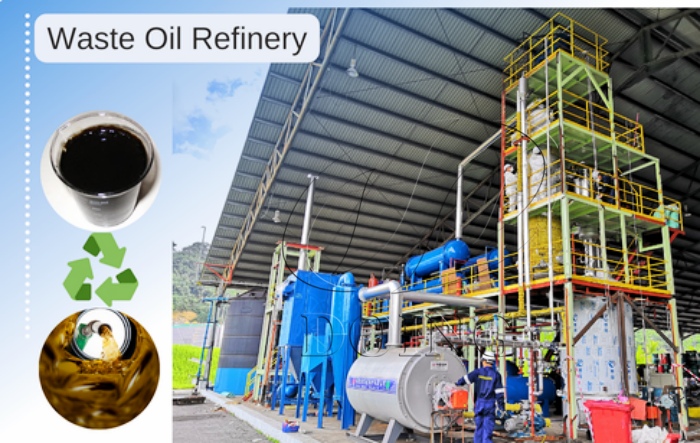

Deep processing and refining equipment for pyrolysis oil

What Should Be Considered Before Buying the First Pyrolysis Plant?

Future expansion is easier to manage when it is considered before the first pyrolysis facility is installed.

Several factors are particularly important:

• Feedstock supply: Is there enough suitable raw material to support future capacity?

• Site space: Is there room for another pyrolysis line or supporting equipment?

• Future capacity: Could the project eventually grow from 10 TPD to 20 TPD, 50 TPD, or more?

• Equipment design: Can the original system be reasonably modified if requirements change?

• Product market: Will future production require oil refining or further carbon black processing?

An expandable project does not mean that every component of the original plant can simply be reused. The practical expansion route depends on the original equipment design, feedstock characteristics, site conditions, and target production capacity.

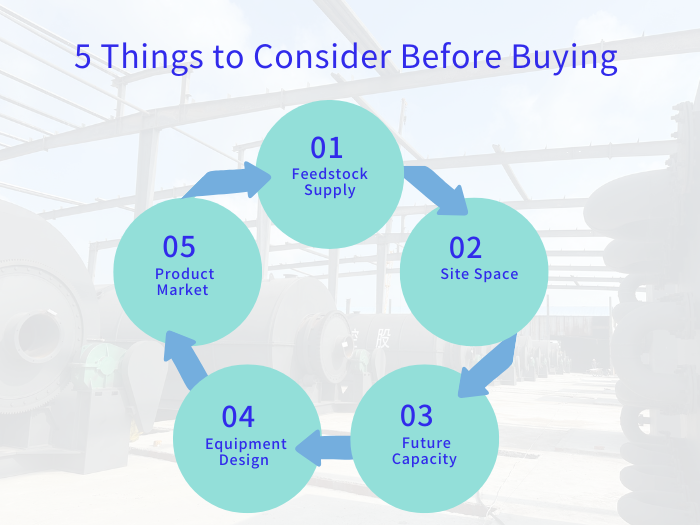

5 factors to consider when purchasing waste pyrolysis equipment

When Does It Make Sense to Expand?

Pyrolysis Plant Expansion usually becomes more practical when the business has enough feedstock, stable product demand, and sufficient operating experience to support a larger system.

Typical signs include:

• Feedstock supply consistently exceeds current processing capacity

• The existing plant is operating close to full capacity

• Product sales have become more stable

• Additional investment can be supported

• More efficient feedstock preparation is needed

• Further product processing is commercially attractive

• Higher automation or production efficiency is required

Starting with a smaller pyrolysis plant can reduce the initial investment pressure, but it is not automatically the cheapest option in every situation. The total cost depends on the original equipment, the expansion route, and the supporting systems that need to be added later.

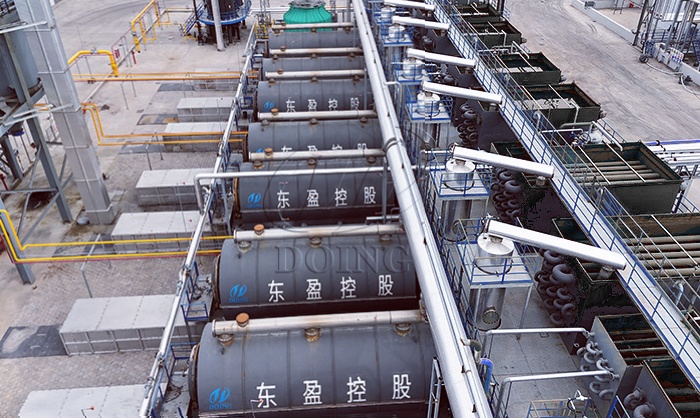

Expansion of the waste pyrolysis projects capacity

Henan DOING's Experience with Pyrolysis Plant Expansion

Henan DOING Company has supplied and installed pyrolysis equipment for projects in more than 100 countries and regions.

From these projects, we have seen different approaches to business expansion. Some customers optimize specific equipment components, some add larger and more automated pyrolysis lines, while others expand into feedstock pretreatment or downstream product processing.

Henan DOING provides batch, semi-continuous, and fully continuous pyrolysis plants, together with related equipment for feedstock preparation and product processing.

For a new project or an existing plant upgrade, our engineers can assess the original equipment, feedstock, target capacity, site conditions, and future production requirements to help determine a practical expansion route.

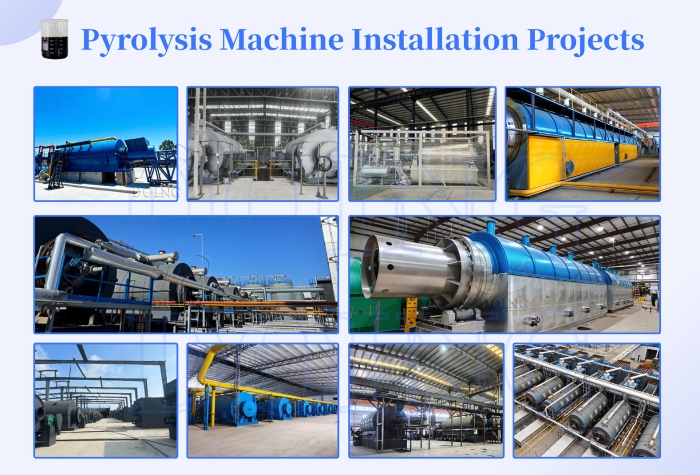

Case studies of waste pyrolysis projects with different processing capacities

Start Small, but Plan for the Next Stage

A small-scale pyrolysis plant can be a practical starting point when feedstock supply and product demand are still developing. As the business grows, however, the next step does not necessarily have to be replacing the original plant.

Depending on the project, growth may involve optimizing existing equipment, adding a new production line, improving feedstock pretreatment, or adding downstream product processing.

The most important decision is therefore not simply how small the first plant should be, but whether the initial equipment and site plan leave a practical path for the next stage of the business.
